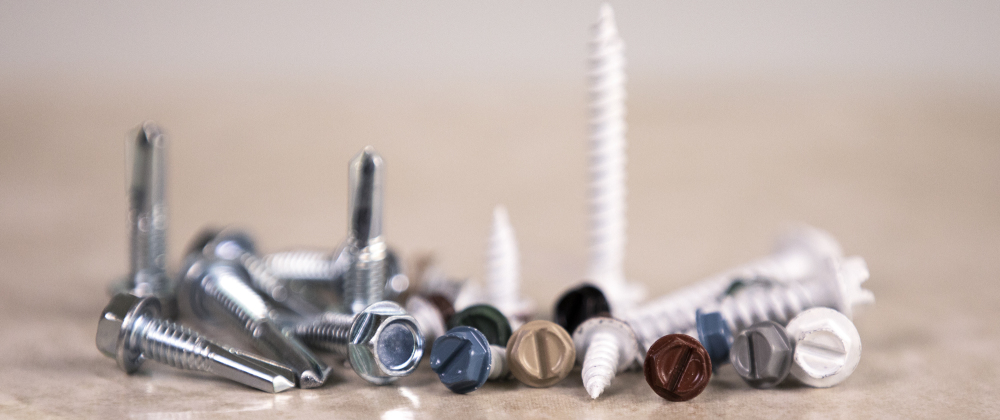

zip tek screws ceramic and steel
28/01/2012

Zip Screws and Tek Screws

Self tapping screws, such as zip screws and tek screws, are perfect for jobs when you plan to connect materials that are of different varieties, such as wood to metal, metal to plastics and metal to metal. Self tapping screws are really versatile and simple to use since they will tap their own threads as you drive them into your materials, and this in turn will save you time and time equals money! There are many kinds of self tapping screws you can buy today and they each have their own purpose.

There are fundamentally two sorts of popular self tapping fasteners available, zip screws and tek screws. Type A screws are also self-tapping, as they tap their own threads, even so, they are not as popular as they normally need a pilot hole to get them started.

There are two kinds of tips for self-tapping screws and that they are the self piercing screw, also identified as zip screws, and the other is the drill bit tip, tek screw type.

Tek screws are intended for use in soft steel or other metals. The points are numbered from 1 through 5, The larger the number, the thicker metal it can go through without a pilot hole. For example, a # 5 tek point can drill a 0.5 in (12.7 mm) of steel. Contractors at times question the quality of their tek screws when the screws break, when the actual reason for breakage is the application for which they are being used. The following is a very simplified reason for heads of tek screws sometimes popping or screws twisting and breaking when drilled into steel too thick for the tek screw used. With a standard tek screw, the front of the fastener will be drilling in slower while the drill bit is drilling the pilot hole than when the threads of the tek screw catch the material being drilled. Once the threads catch, the screw will turn as fast as the TPI. In other words, if the screw is 16tpi, the screw will go in a 16th of an inch each time it turns. The problem becomes, if it is a thick piece of metal, the threads will catch before the drill bit is done drilling through the metal. The consequence is that the front of the fastener will be moving slower than the back of the screw and the screw will break. However, by having the drill bit of the screw longer up the shank of the screw and changing the threads per inch to a finer thread (24 threads per inch), the front and the back of the screw will move at the same time and the tek screws won’t break.

While self-piercing zip screws can pierce their own hole in to soft metals and create its own threads, this is usually done with thinner gauges of metal starting at 24 gauge. Needlepoint screws, are also commonly known as zip screws and are self-tapping in that they tap their own threads.

They are also sometimes referred to as self-piercing screws because they will ‘self start’ with soft metals when pressure is applied. #8 x1/2 Hex Washer Head Needlepoint screws (zip screws) have reportedly worked best when used in square duct with 30 and 28 gauge metals. Contractors state that they have better luck with a #7 needlepoint when doing round pipe with 24 and 26 gauge metals. Application is very important when choosing which fastener to use in your specific job, otherwise, the screws may not perform in the way that they were expected. Many screw ‘failures’ are actually misapplications. Although some say that they have been able to use #7 zip screws in up to 20 gauge metals, it has been our experience that when working with metal 22 gauges and thicker, drill bit tip (tek screw type) really does the job much easier.

Zip screws and tek screws are readily available to help save you time and money.
