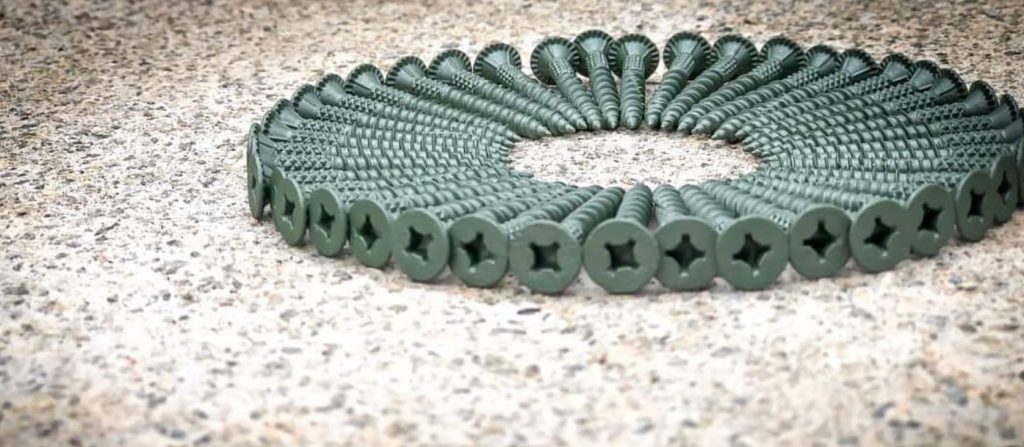

Cement Board Screw

Cement Board Screws

For use on Cement Board and into wooden supports.
Hardie Board Screws

Fiber Cement Board Screws

Choosing the right screws for the materials you’re joining is important. At a glance, all screws may appear similar, but when you look closely at the different features and properties of screws, you find that certain applications require a particular type of screw.

Cement board screws are one example of a fastener that has specialized applications. Contractors use these fasteners for attaching fiber cement siding, which is a common feature on many modern homes for its performance in a range of weather conditions.

While the siding offers durability on its own, the right fastener will secure it in place and provide the best possible performance results. Fiber cement board screws offer a ceramic coating to resist corrosion and withstand the environment as much as James Hardie siding.

Cement Screw Use Considerations

Cement screws are most commonly used for James Hardie siding, and they also apply to fiber cement roofing trim and flooring tile in kitchens and bathrooms. Consider these factors when choosing concrete fasteners for your applications:

  • Diameter: The diameter, or gauge, of this screw refers to the outside measurement that enables it to fit through a fixture in a hole of equal size. The 8-gauge screw has a diameter of 0.164 inches, and it’s one of the most common sizes for fiber cement siding screws.
  • Length: These screws can range from 1-1/4-inches to 6 inches long. To determine the maximum length for an application, add 1-3/4 inches to the thickness of the fastened material. When using cement screws for James Hardie siding, 1 ¼-inch screws are recommended for the best results.
  • Quantity: When installing fiber cement siding, it’s best practice to install a screw every 6 to 8 inches along the perimeter of the boards. It’s important to factor this in when calculating the number of screws needed for a single project.

Cement Board Screw Points

For cement board, the nature of the material means cement screws are ideally suited. Cement board screws are available with a variety of points adapted to different supports and structures:

  • Sharp point: For quickly piercing through the cement board and into wooden supports
  • Spoon point: For removing material ahead of the screw for fast advancing through thick cement board
  • Self-drilling point: For screwing into materials without pre-drilling a pilot hole
  • Reamer wings: Along with a self-drilling point, these are used to attach wood to metal

With so many choices in tips and a wide variety of lengths and diameters, you can find the cement board screw that is ideally suited to your project. We work with one manufacturer to guarantee the quality and consistency of all of our fasteners. You know you’re getting a cement screw that will meet your needs and secure your cement boards in a variety of conditions.

Additional Cement Board Screw Properties

If you’re hesitating to choose cement board screws versus drywall screws, it’s also important to consider the other advantages you get with our cement screws:

•  High-quality steel that avoids shear forces and breakage
•  Consistent threads that allow for fast and reliable screwing
•  Gray ceramic coating for corrosion and humidity resistance
•  Eight nibs under the head to ensure your screws don’t back out over time

We’ve included these features on our cement board screws to make sure they give you the easy installation and long-term secure hold you need for your cement board project. Don’t waste time or risk having your cement board pull out because you’ve chosen the wrong screws. Our quality cement screws are designed specifically for all types and grades of cement board and will work as advertised every time.

Place Your Order Today

We invite you to contact us today for a free quotation for your cement board screws. Depending on the type and dimensions, you can choose cases of 3,000, 4,000 or 5,000. We’ll send you FREE Samples if you’d like to try our screws out to be sure you’re choosing the right model.

With All Points Fasteners, you’re getting quality at a great price. That combination is hard to beat and can save you money over pricier screws — especially when you’re on a big project and need a large quantity of cement board screws. If you’ve got questions, don’t hesitate to get in touch with us.

phillips wafer cement board screws

PHILLIPS WAFER CEMENT BOARD - SHARP POINT

  • #2 PHILLIPS DRIVE, HI-LO THREAD, SHARP POINT
  • 8 NIBS UNDER HEAD, CERAMIC COATED GRAY
  • Designed for fastening fiber cement board to wood.

Applications include: lap siding, fiber cement roofing
trim & flooring tile in kitchen & bath.

PART # SIZE LBS/M CASE QUANTITY
PSW101 #8-8 x 1-1/4″ 6 5,000
PSW103 #8-8 x 1-5/8″ 7.5 4,000
PSW105 #8-8 x 2-1/4″ 11.3 3,000
phillips wafer cement screw

PHILLIPS WAFER CEMENT BOARD - SPOON POINT

  • #2 PHILLIPS DRIVE, HI-LO THREAD, SPOON POINT
  • 8 NIBS UNDER HEAD, CERAMIC COATED GRAY
  • Designed for fastening fiber cement board to wood.

Applications include: lap siding, fiber cement roofing
trim & flooring tile in kitchen & bath.

PART # SIZE LBS/M CASE QUANTITY
702CBP #8-8 x 1-1/4″ 5.8 5,000
704SCP #8-8 x 1-5/8″ 7.3 4,000
708CBP #8-8 x 2-1/4″ 11.3 3,000
phillips wafer self drilling cement board screws

PHILLIPS WAFER CEMENT BOARD - 3 self drilling

  • #2 PHILLIPS DRIVE, #3 SELF DRILLING POINT
  • 8 NIBS UNDER HEAD, CERAMIC COATED GRAY
  • Designed for fastening fiber cement board to 16-20 gauge metal studs.

Applications include: lap siding, fiber cement roofing
trim & flooring tile in kitchen & bath.

PART # SIZE LBS/M CASE QUANTITY
702CBD #8-8 x 1-1/4″ 5.8 5,000
704CBD #8-8 x 1-5/8″ 7.3 4,000
phillips wafer cement board screw

PHILLIPS WAFER CEMENT BOARD - reamer wings

  • #2 PHILLIPS DRIVE, #3 SELF DRILLING POINT & REAMER WINGS
  • 8 NIBS UNDER HEAD, CERAMIC COATED GRAY
  • Designed for fastening fiber cement board to
    16-20 gauge metal studs.

Applications include: lap siding, fiber cement roofing
trim & flooring tile in kitchen & bath.

PART # SIZE LBS/M CASE QUANTITY
702CBR #8-18 x 1-1/4″ 5.8 5,000
704CBR #8-18 x 1-5/8″ 7.3 4,000
708CBR #8-18 x 2-1/4″ 11.3 3,000
